SpinFire Publish Dynamic Properties

A pipeline can define the workflow of a file through a sequence of actions. A particular file is unknown until the pipeline is deployed and executed. However, the pipeline definition must somehow refer to the file being processed generically. To do this, pipelines use dynamic properties.

A dynamic property passes information about the file that the current job has found from trigger to actions. You can extract the file name, file path, file extension, and time and date stamps to build a string.

For an action field, such as the CAD Filepath, the actual file path and file name will differ depending on the file that's queued; however, the pipeline action must describe this generically to accommodate these dynamics.

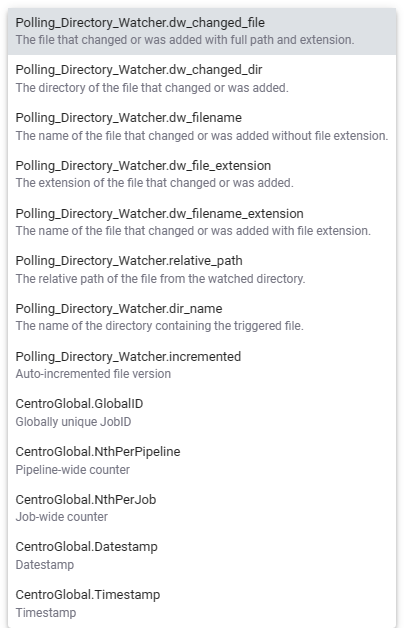

When an action field contains the dynamic property icon, you can click on the icon to see the list of dynamic properties available for that field. Typing a percent sign (%) will also display the list.

Available Dynamic Properties

The file that changed or was added with full path and extension

The absolute file path and file name of the file queued.

Dynamic Property code	%DW_Name.dw_changed_file%
Result example	C:\CADFiles\test.step

The directory of the file that changed or was added

The absolute file path of the file queued.

Dynamic Property code	%DW_Name.dw_changed_dir%
Result example	C:\CADFiles

The name of the file that changed or was added without file extension

The file name of the file queued without the extension.

Dynamic Property code	%DW_Name.dw_filename%
Result example	test

The extension of the file that changed or was added

The extension of the file name of the file queued.

Dynamic Property code	%DW_Name.dw_file_extension%
Result example	step

The name of the file that changed or was added with file extension

The file name and extension of the file name of the file queued.

Dynamic Property code	%DW_Name.dw_filename_extension%
Result example	test.step

The relative path of the file from the watched directory

The relative file path of the file name of the file queued.

Dynamic Property code	%DW_Name.relative_path%
Result example	C:\CADFiles

Auto-incremented file version

An auto-incremented, sequential, numeric value. This can be used to give a unique number to files being processed.

Dynamic Property code

%DW_Name.incremented%

Result examples

First job - 1

Second job - 2

The relative URL of the uploaded Catalog Resource

The identifier of the Catalog part created.

Dynamic Property code	%CAD_to_Catalog_1.catalog_id%
Result example	"seascooter"

Datestamp

The server based date in the format of yyyy-mm-dd. This can be used to give a unique number to files being processed.

Dynamic Property code	%CentroGlobal.Dateestamp%
Result examples	2016-02-20 (translates to Feb-20-2016)

Pipeline-wide counter

A counter value for the pipeline. This can be used to give a unique number to files being processed.

Dynamic Property code	%CentroGlobal.NthPerPipeline%
Result examples	1

Globally unique JobID

A counter value for the pipeline. This can be used to give a unique number to files being processed.

Dynamic Property code	%CentroGlobal.GlobalID%
Result examples	{14975117603}-{214}

Timestamp

The server based time in the format of hh-mm-ss-mmm. This can be used to give a unique number to files being processed.

Dynamic Property code	%CentroGlobal.Timestamp%
Result examples	09-24-22-427 (translates to 9:24 AM 22 seconds and 427 milliseconds)

Job-wide counter

A counter value for the job. This can be used to give a unique number to files being processed.

Dynamic Property code	%CentroGlobal.NthPerJob%
Result examples	214

Examples

Directory watcher name: DirWatcherName

Source file path: C:\CADFiles

Queued file name: test.step

Dynamic String	Resulting Output
^{%DirWatcherName.dw_changed_file%}	C:\CADFiles\test.step
%DirWatcherName.dw_changed_dir%\outputFile_%DirWatcherName.dw_file_extension%.ACT3D	C:\CADFiles\outputFile.step.ACT3D
%DirWatcherName.relative_path%\%DirWatcherName.dw_filename_extension%.ACT3D	C:\CADFiles\test.ACT3D
