What's New in SpinFire Manage

SpinFire Manage 2025.1.0

Consolidates the PipelineManager and PipelineHost services into a single Pipeline Service, installed now as part of a single installer alongside the Web Application:

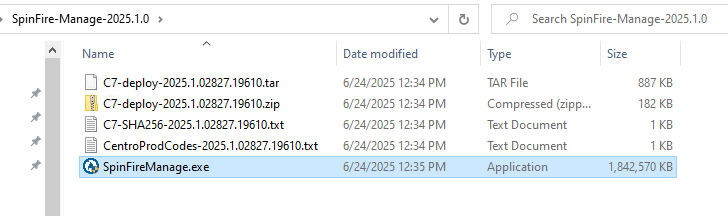

A single installer now installs both the Web App and the Pipeline Service

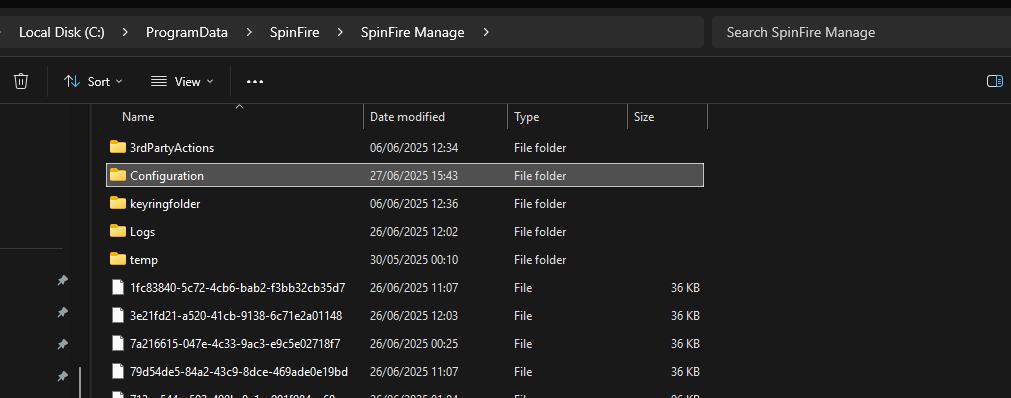

Both applications now have a common configuration folder, installed by default at C:\ProgramData\SpinFire\SpinFire Manage\Configuration\:


Importer updates

Importer

Version

NX

Up to NX2412

CATIA V5

Up to V5-6R2025 (R35)

STEP

Added support for AP 242 Ed2 and Ed3

IFC

FC2 up to 2.3.0.1, IFC4 up to 4.3

Autodesk Inventor

Up to 2026

Parasolid

Up to 37.1

Revit

Up to 2025

Solid Edge

Up to 2025

SolidWorks

Up to 2025



ArangoDB 3.11 out of support, please install ArangoDB 3.12 Enterprise

SpinFire Manage customers using ArangoDB Community Edition or ArangoDB <3.12 MUST now migrate to

ArangoDB 3.12 Enterprise Edition, using a Linux-based host.

See also (TBC)

SpinFire Manage 8.6.3

Release Date: 27-September-2024
SpinFire Manage 8.6.3 updates importers, introduces category groups, adds tessellation control to PNG/SFW conversions and fixes a number of bugs.

Category Groups

Group Categories to simplify the Catalog Part Category assignment filter.

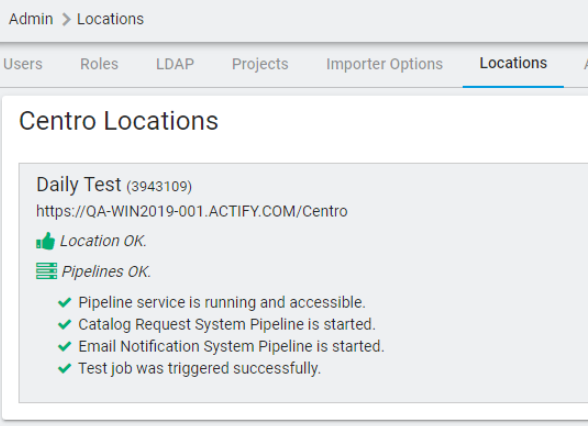

Test Pipeline Services communication

Allow admins to see at a glance the status of the Pipeline services from the Admin Area




Importer updates

Importer

Version

NX

Up to NX2406

Navisworks

Up to 2025

Creo

Up to 11

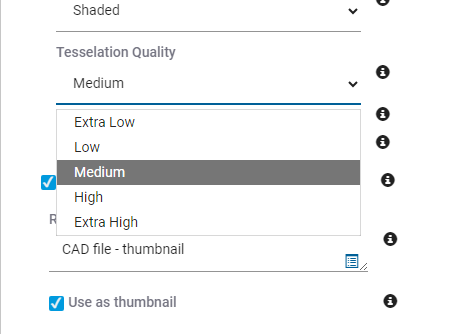

Tessellation quality Control

Allow PNG and SFW conversions to control the level of tessellation:
