Scripting

Scripting in SpinFire Insight provides technical oriented users to write Python scripts to automate tasks and capture information repeatedly.

SpinFire Insight provides a user interface to

• create,

• write,

• edit,

• save,

• load,

• and run scripts.

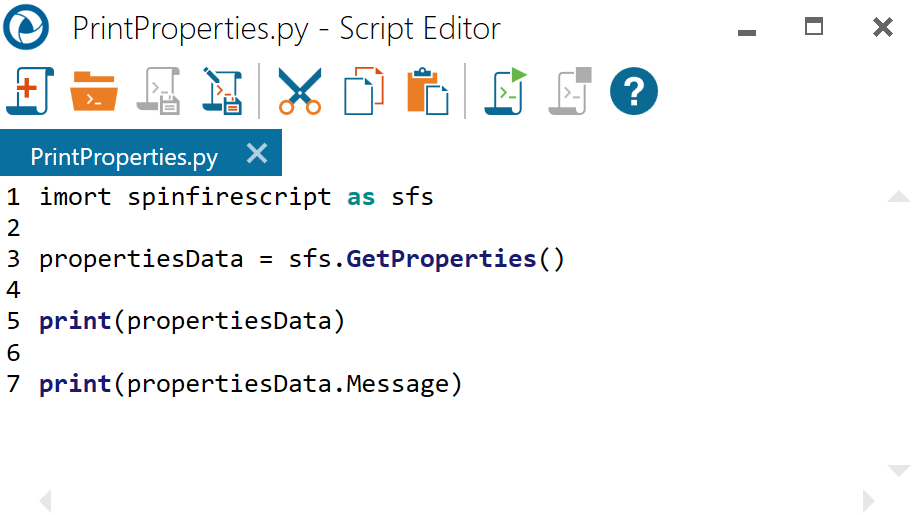

The scripting toolbar provde the folllowing functions.

Icon	Purpose
	Creates the start of a new script.
	Used to open a script.
	Save Script.
	Save Script As.
	Cut to clipboard.
	Copy to clipboard.
	Paste to clipboard.
	Run script.
	Stop script.
	Show documentation.

To Create/Edit a Script

1. After opening a 3D model, click on the Scripting icon on the 3D toolbar.




2. Select New Script... .

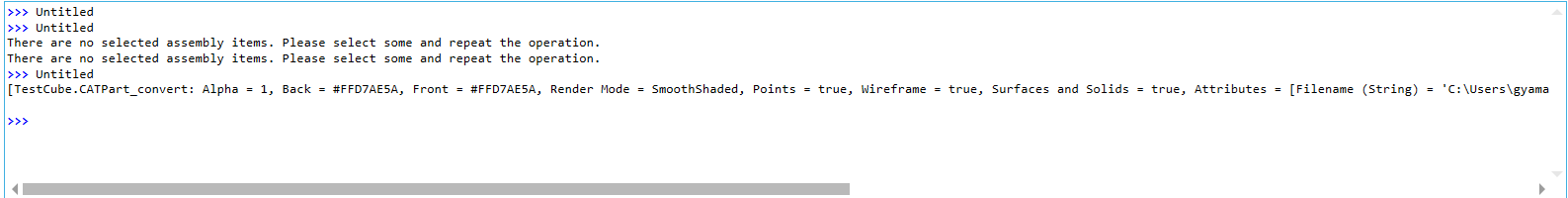

To View Scripting Output

1. Clck Vew > Python.NET Console




2. The Python console appears below the graphical area. Print statements and errors appear here.
