Parts Properties Chart Improvements

Several Part Properties Chart improvements were added to SpinFire Ultimate providing users to chart against additional information or more control over the feature.

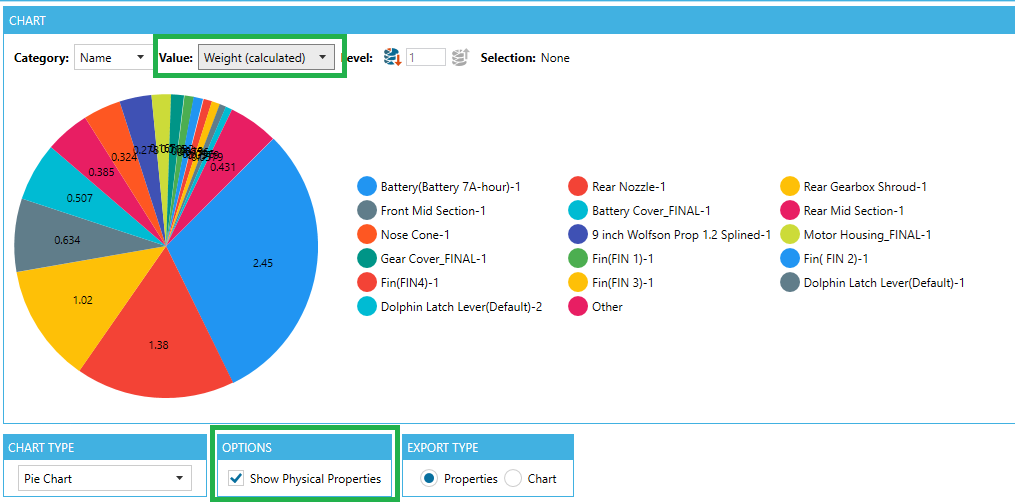

Chart by Calculated Weight

When using the Show Physical Properties, one can chart with the value as the calculated weight of each part.

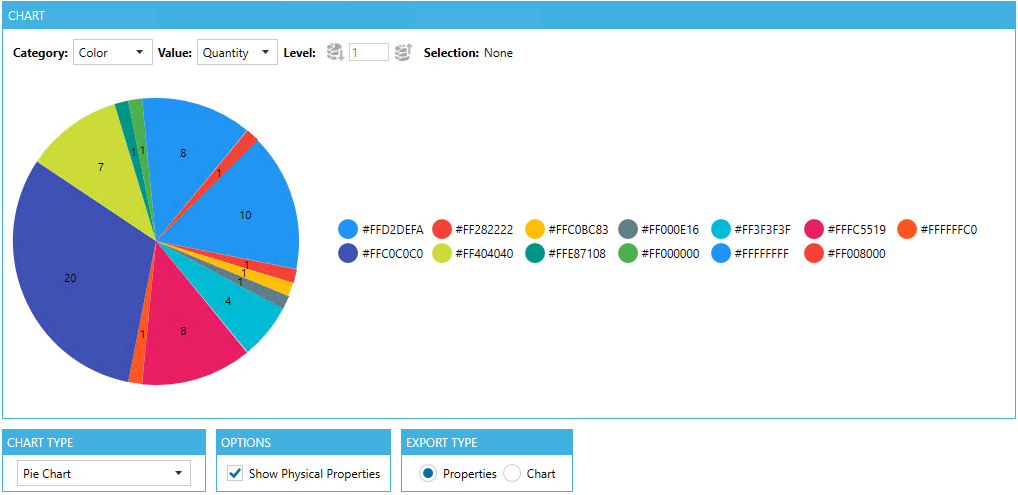

Chart by Color

From the main Category, users can chart based on part color. Colors appear in their hexidecimal RGB format.

Note: Parts consist of a front and back color. The front color is used for charting.

Hide Columns

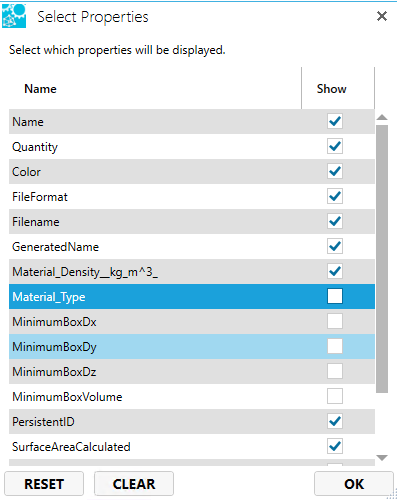

The Select Properties dialog empowers users to hide columns in the Properties panel. One can also Reset and Clear columns all at once.

Note: At least one Cateogry column and one Value column must appear.

Issues

A case where some part volumes were not calculated accurately for specific parts has been corrected.
