Centro Settings

Centro settings holds the URL and credentials of your Centro account. This allows you to download and open files from Centro directly from the SpinFire Ultimate library.


Establishing a Centro Connection

To establish a connection to your instance of Centro:

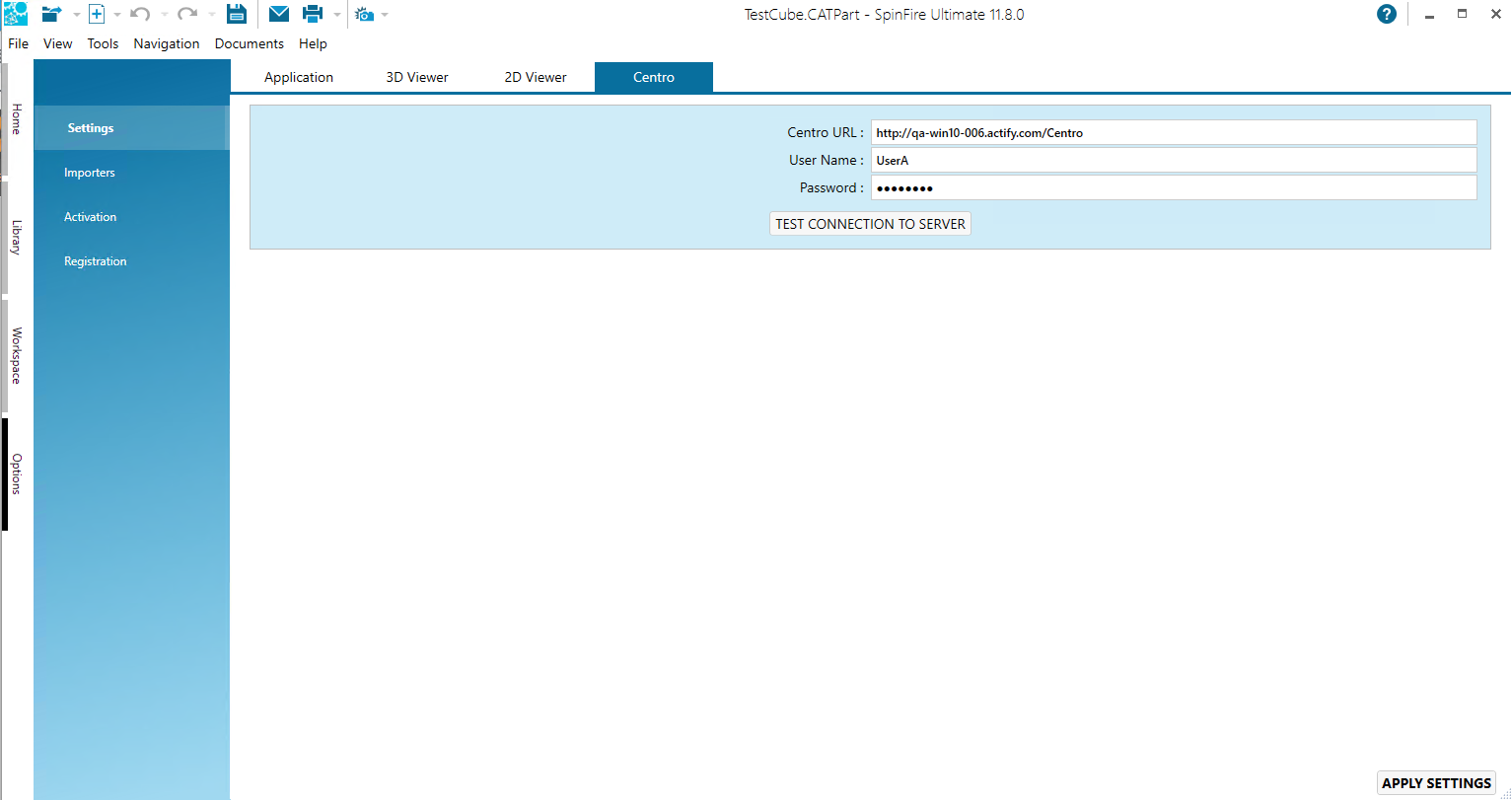

  1. Navigate to the Options > Settings > Centro tab.
  2. Enter in the Centro URL where your instance is hosted.
  3. Enter the Centro user name.
  4. Enter the user's password.

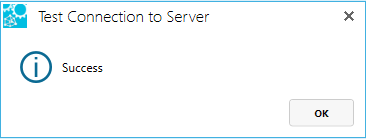

  5. Click Test Connection To Server to verify the URL and credentials are valid.
  6. Click Apply Settings.


Note: The Centro user's permissions dictate what projects are visible and changeable.


If an error is returned when testing the connection,

  • Verify the URL is correct by trying in a web browser.
  • Verify the user name and password is correct. One can login to the Centro instance to verify this.
  • Or contact your organization's, Centro administrator.
