Pinned Parts
Centro lets users “Pin” parts to compare attributes of a set of catalog parts side-by-side via the “pinned” menu.

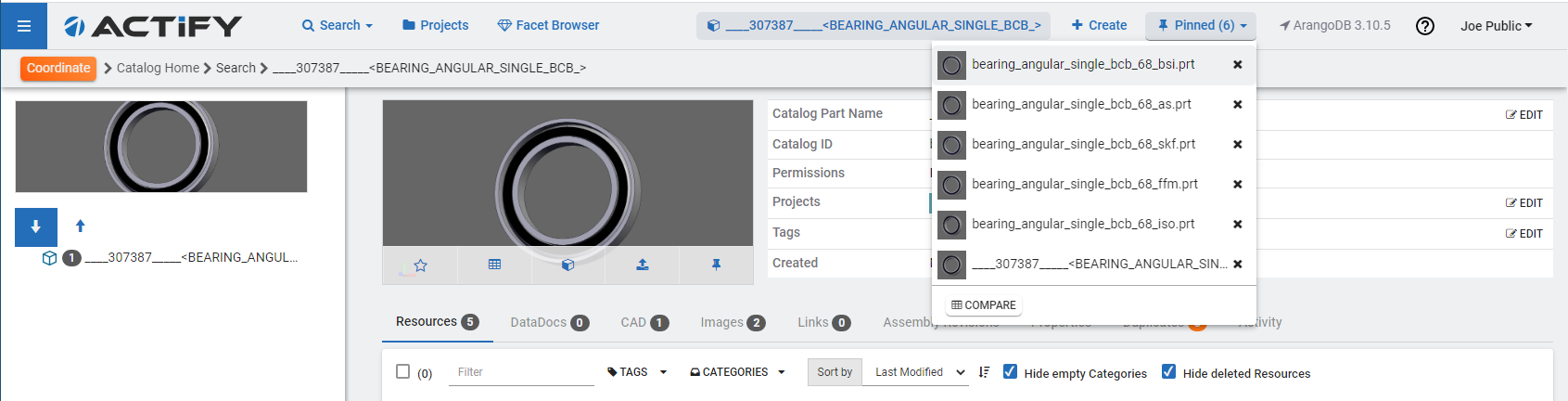

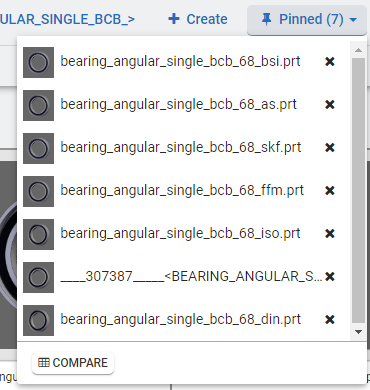

A pin icon found in the top navigation bar shows the number of pinned parts, and offers a “Compare” button if one or more parts are pinned. The pinned collection is private to a particular user.
A part can be pinned from:

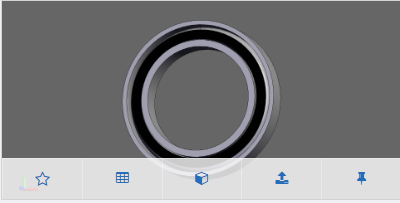

With a button click on the thumbnail of the catalog part view

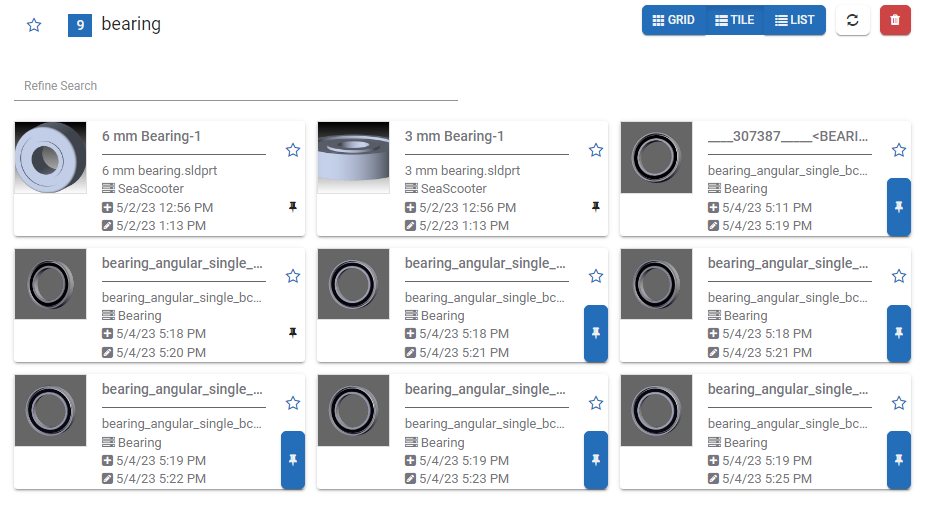

From the thumbnail on search results

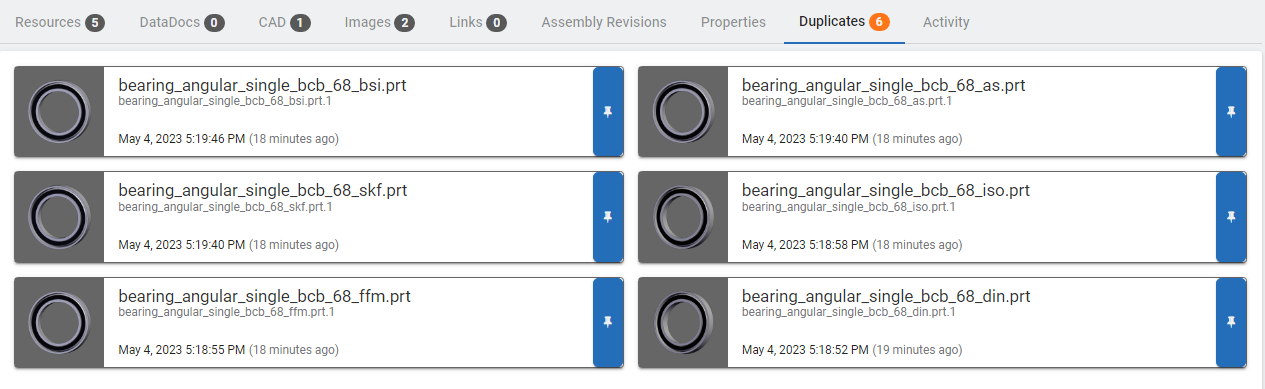

Or from the duplicate tab within the part view

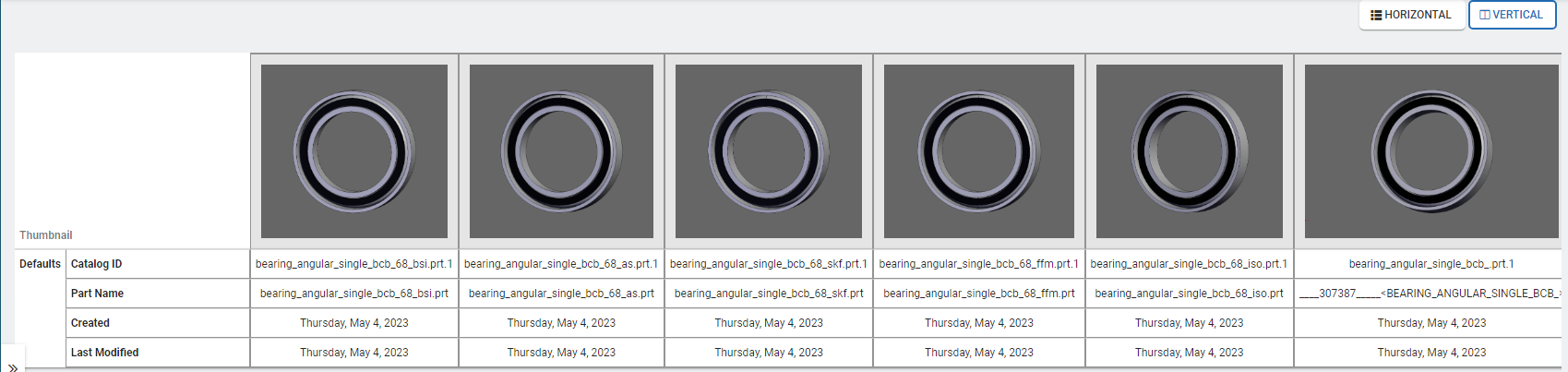

On the compare page, users can:
Items can be viewed vertically or horizontally
Items can be removed from the Left Side Panel

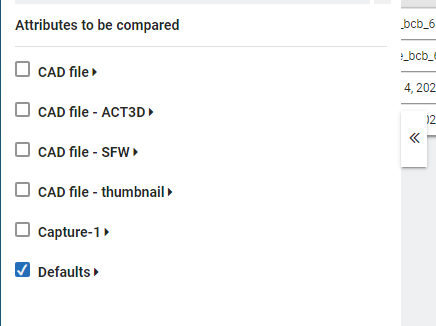

Attributes can be toggled on or off from the Left Side Panel enabling users to compare from the CAD file or associated resources
